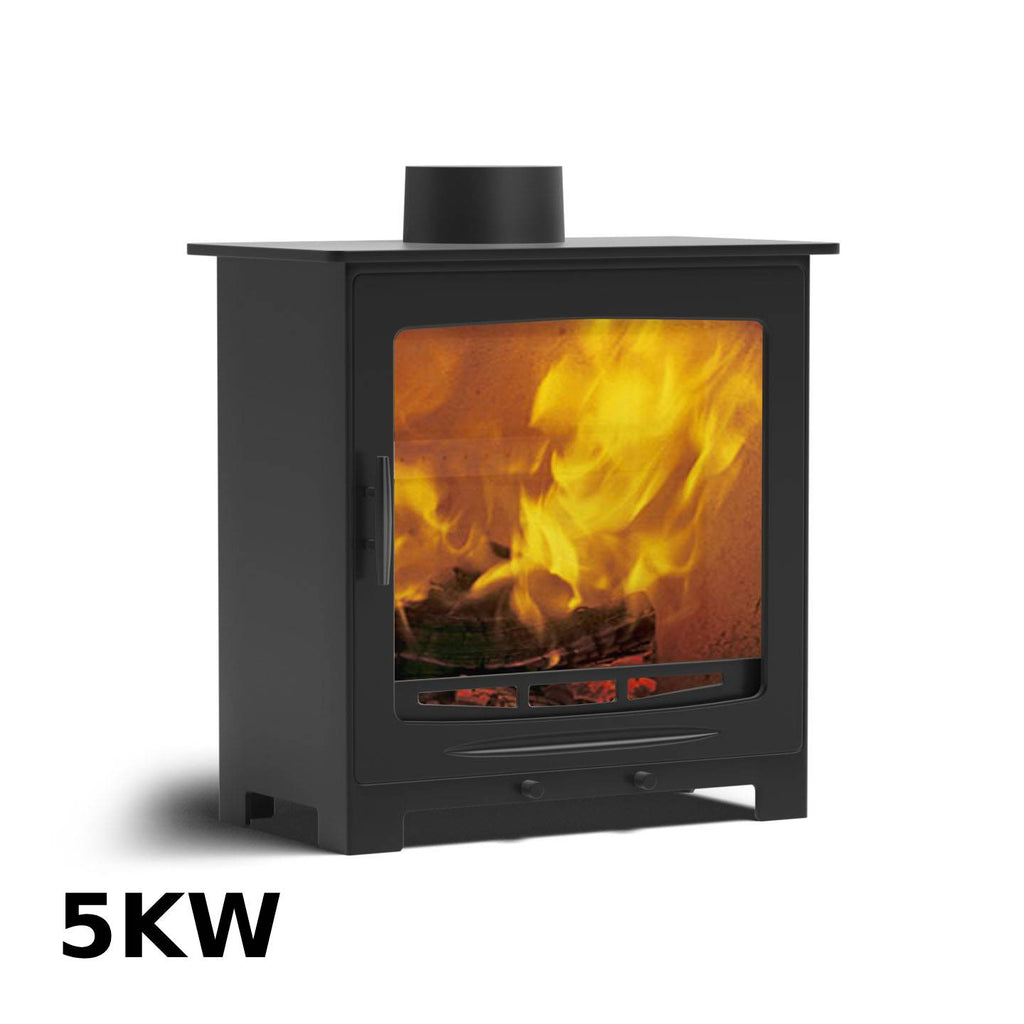

Stirling Wood Burning Stove

The Castle Stoves Stirling is a 5kW wood burning stove with a larger body and viewing window than the Tiverton, while retaining the clean contemporary styling of the Castle range. Its 5kW nominal output sits below the higher-output Framlingham, making model selection dependent on the room’s calculated heat requirement.

The Stirling combines an 83.9% efficiency rating with primary and secondary/tertiary air controls. Its secondary-air airwash helps keep the viewing glass clear, while an external-air adaptor allows connection to a suitable 100mm duct where required.

Key Specifications:

• Nominal output: 5.0kW
• Output range: 4.3–6.4kW
• Efficiency: 83.9% (A+ energy rating)
• Dimensions: H560 × W520 × D359mm
• Weight: 87kg
• Maximum log length: 290mm
• Flue diameter: 125mm
• Flue outlet: Top
• Fuel: Dry, seasoned wood logs with less than 20% moisture
• Construction: Steel stove body with vermiculite-lined wood-burning firebed
• Air controls: Separate primary and secondary/tertiary controls
• Airwash: Secondary-air airwash system
• External air: Adaptor supplied for connection to a suitable 100mm duct where required
• Ecodesign compliant
• Product code: 60STIR

Smoke Control Areas: Suitable for use in Smoke Control Areas when installed and operated in accordance with the approved instructions, burning permitted wood logs with no more than 20% moisture and with the model’s welded air limiter retained so the secondary/tertiary control leaves the required minimum 8mm opening when fully closed.

Warranty: 12-month standard warranty covering safety, performance and construction. This may be extended to five years where the stove is installed by an approved competent installer or signed off by Building Control, registered within one month of purchase, and serviced annually with records retained, subject to Specflue’s warranty terms. A further conditional extension to ten years may be available when installed with qualifying Schiedel chimney products, subject to the applicable installation, registration, servicing and exclusion terms.
